Brief Introduction

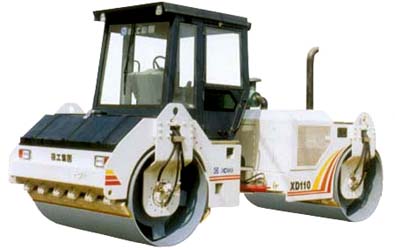

XD110 vibratory rollers are a kind of heavy-duty
tandem roller, which is mainly used for compaction
of asphalt and concrete surface of high-class
road, airport, parking place and industrial
yard, etc.They are also suited for compaction
of largescale base, sub-base and embankment.
XD110 vibratory roller adopts full-hydraulic
transmission and electro-hydraulic control
system with main components and spare parts
imported from international manufacturers.
It features with the structure of whole-drum
stepless variable drive, infinite frequency
adjustable vibration,dual-amplitude, crab
walking mechanism, adjustable sprinkling system
and spring loaded scraper, etc.
Main Technical Specification
| Description |
XD100 |
XD110 |
| Working mass(Kg) |
10300 |
10900 |
| Mass distributed on
front drum(Kg) |
5200 |
5500 |
| Mass distributed on rear drum(Kg) |
2100 |
5400 |
| Static linear load on front drum(N/cm) |
268 |
284 |
| Static linear load on rear drum(N/cm) |
263 |
279 |
| Speed range(Km/h) |
0-10 |
0-10 |
| Theoretical gradeability(%) |
30 |
30 |
| Min. outer turning radius(mm) |
5900 |
2900 |
| Min. ground clearance(mm) |
420 |
420 |
| Steering angle |
±(23°+23°) |
±(23°+23°) |
| Crab-walking angel |
±23° |
±23° |
| Swinging angle |
±12° |
±12° |
| Max. crab-walking distance(mm) |
±200 |
±200 |
| Vibrating frequency(Hz) |
30-48 |
30-48 |
| Nominal amplitude (high/low)(mm) |
0.80/0.40 |
0.80/0.41 |
| Centrifugal force@48Hz high/low
amp.(kN) |
120/60 |
133/66 |
| Vibrating drum diameter(mm) |
1250 |
1250 |
| Vibrating drum width(mm) |
1900 |
1900 |
| Engine |
|
| Model |
Cummins
B3.9-C |
| Type |
water-cooling,
supercharged |
| Max.power@2500r/min(kW) |
97 |
97 |
| Total length(mm) |
6000 |
6000 |
| total width(mm) |
2030 |
2030 |
| Total height(mm) |
3320 |
3320 |
| Fuel tank capacity(L) |
220 |
220 |
| Water tank capacity(L) |
2×450 |
2×450 |
Following options for
XD110 could be available at request of the
customers:
* ROPS (add 150mm to the overall height).
* Control cab + FOPS (add 150mm to the overall
height).
