Introduction

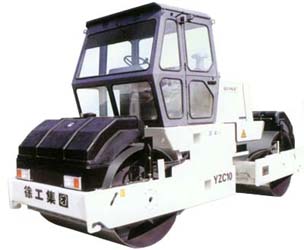

YZC7/YZC10 tandem vibratory roller is of middle-heavy,self-propelled
double drum vibratory roller,mainly applied
to compaction for the asphalt concrete road
surface of the high-grade motorway,airport,parking
area and industrial yard, and also being used
for the large-scale base,sub-base and embankment
fill compaction.
YZC7/YZC10 vibratory roller adopts the fully
hydraulic transmission and fully electrical-hydraulic
control,with main components purchased from
international manufacturer. This type of machine
is featured in variable infinite speed for
driving,infinite frequency-adjusting vibrating,dual
amplitude, crab-walking,adjustable water sprinkling,spring-tensioned
scrapper,etc.
Main Technical Specification
| |
YZC7 |
YZC10 |
| Working mass(Kg) |
7160 |
10000 |
| Mass on front drum(Kg) |
3630 |
5000 |
| Mass on rear drum(Kg) |
3530 |
5000 |
| Static linear load on front drum
(N/cm) |
247 |
292 |
| Static linear load on rear drum(N/cm) |
240 |
292 |
| Speed range(Km/h) |
0-10.5 |
0-10 |
| Theoretic gradeability(%) |
33 |
30 |
| Min. outer turning radius(mm) |
4800 |
6000 |
| Min. ground clearance(mm) |
260 |
330 |
| Max. shell protuberating(mm) |
75 |
75 |
| Steering angle |
±38° |
±40° |
| Swinging angle |
±11° |
±12° |
| Vibrating frequency(Hz) |
48 |
48 |
| Nominal amplitude (high/low)(mm) |
0.71/0.35 |
0.8/0.4 |
| Centrifugal force@48Hz high/low
amp.(kN) |
71/35 |
120/60 |
| Vibrating drum diameter(mm) |
1040 |
1220 |
| Vibrating drum width(mm) |
1450 |
1680 |
| /Engine |
|
| Model |
Deutz F4l912 |
Deulz F6l912 |
| Type |
Air-coolong,aspiration
automatically |
| Max. power@2400r/min(kW) |
51 |
80 |
| Total length(mm) |
4545 |
5330 |
| Total width(mm) |
1600 |
1830 |
| Total height(mm) |
2930 |
3030 |
| Fuel tank capacity(L) |
140 |
260 |
| Water tank capacity(L) |
2×325 |
2×500 |
Following options for
the YZC10 could be availabe at the request
of customers:
* Cummins B5.9-C water-cooling, supercharged;
power 113kW@2500r/min?
Following options for
YZC7/YZC10 could be availabel at the request
of customers:
* ROPS and FOPS (180mm increased for total
height).
* Cab + ROPD and FOPS (180 increased for total
height).
