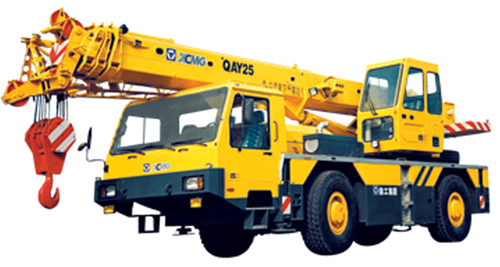

Outline
dimensions(L×W×H) |
10700×2490×3550
mm |
Total
mass |
25.2 t |
Lifting
performance |
Max.load
moment |
948 kN.m |
Max.lifting
height |
Boom 28.2m,
Boom + Jib 36.6m |
Max.
lifted load for travel |
6t |
Travel
performance |
Approach
angle/Departure angle |
20°/21° |
Min.ground
clearance |
360mm |
Max.travel
speed |
70km/h |
Min.
turning diameter |
20m for front
wheel steering, 14m for all wheel
steering, crab walk possible. |
Max.
gradeability |
58% |
Boom |
No.of
section/Length |
8.9-28m/4? |
Cross-section
|
Hexagonal large
round angle cross- section, reasonable
load, heavy load bearing capability.
|
Telescoping
|
Single cylinder
plus wire ropes, synchronous telescoping. |
Jib |
No.of
section/Type |
Triangle lattice
structure, good stability and light-weight. |
??/?? |
8.15m/1? |
Hoisting
|
Type |
Main and auxiliary
winches, build-in planetary reducer,
driven by constant displacement
piston motor. |
working
speed |
Not less than
140m/min. |
Swing
|
Type |
Two-stage planetary
reducer, external coupling and central-adjusting,
convenient for adjustment and maintenance,
and controlled free-swing available. |
working
speed |
360°full
swing, swing speed is not less than
2.5r/min. |
Elevating |
Single cylinder
with imported balance valve for
front support elevation, hoist down
by gravity, low energy consumption.
|
Outrigger
|
Type |
H-type outriggers
at front and rear |
Extension
width |
lateral extension
6.2m, longitudinal extension 6.325m,
mid-position extension (4.4m) permissible.
|
Hydraulic
system |
Oil
pump |
Imported triplex
gear pumps, main pump is piston
variable displacement pump with
load feedback function. |
Control |
Hydraulic pilot
proportional control, convenient,
sensitive and accurate. |
Safety
device |
Automatic
moment limiter (AML) contributes
dynamic display of crane motions
by configuration, and with automatic
overload protection.Overwind cut-out
device, height limiter, outrigger
hydraulic lock and balance valve. |
Carrier |
Self-made
2-axle carrier with all-axle drive,
all wheel steering and crab walk
possible. |
Engine |
6-cylinder,
water cooling and turbo- charged
aftercooled diesel engine, exhaustion
emission complies with regulations
EURO?,max. output 184kW, plateau
type engine is for option. |
Transmission
|
Mechanical
control, change gear with sychronizator,eight
gears plus one off-road gear. |
Suspension
|
Hydro-pneumatic
suspension with auto-leveling, manually
raise/lower and rigidly lock the
carrier. Max. stroke 160mm. |
