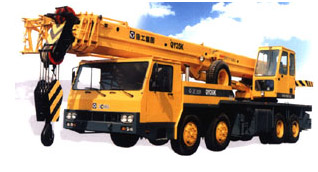

QY35K
Hydraulic mobile crane
Introduction
QY35K belongs to one of "K" series
products.With a max. lifting load of 35t
at 3 m working radius,it has a boom of 4
sections which are of large arc hexagon
profile and two sections of side jibs. Derriking
with a single front cylinder,double indepandant
winchs,pilot hydraulic proportion control
system, full and spacious cabin with good
eyeview,environment friendly engine,complete
security fittings.The garevity center is
lower,ensuring high stability and fast travelling
speed.It is of high manuvorbility and can
be used in various working occasions.
Technical
data in travel state |
Dimensions |
,
|
,
|
,
|
Overall length |
mm |
, |
12463 |
Overall
width |
mm |
, |
2500 |
Overall
height |
mm |
, |
3280 |
Wheel base |
, |
, |
, |
1st axle |
mm |
, |
1520 |
2nd axle |
mm |
, |
3815 |
3rd axle |
mm |
, |
1350 |
Track |
, |
, |
, |
1st track |
mm |
, |
2079 |
2nd track |
mm |
, |
1834 |
weight |
, |
, |
, |
Dead weight in travel
state |
kg |
, |
32050 |
Axle load |
, |
, |
, |
1st axle |
kN |
, |
11350 |
2nd axle |
kN |
, |
20700 |
power |
, |
, |
, |
Model of engine |
, |
steyrWD615.67A |
CumminsMII-C290 |
Engine rated output |
kN/(r/min) |
206/2200 |
216/2100 |
rated torque |
N.m/(r/min) |
1100/1400 |
1200/1400 |
rated turning speed |
r/min |
2200 |
2100 |
Travel |
, |
, |
, |
Travel speed |
, |
, |
, |
Max.travel speed |
km/h |
72 |
69 |
Min. travel speed |
km/h |
2.9 |
4.6 |
Turning diameter |
, |
, |
, |
Min. turning diameter |
m |
24 |
24 |
Min.turning diameter
at boom tip |
m |
25 |
25 |
Min.ground clearance |
mm |
260 |
260 |
Approach angle |
° |
16 |
16 |
Depature angle |
° |
15 |
15 |
Braking distance(at
30km/h) |
m |
≤10 |
≤10 |
Max. gradability |
% |
30 |
29 |
Fuel consumption
of 100km |
L |
30 |
30 |
technical
data for lifting operation |
lifting perfomance |
,
|
,
|
Max.total rated lifting
load |
t |
35 |
Min.rated working
radius |
m |
3 |
Turning radius at
swing table tail |
mm |
3055 |
Max.load moment |
, |
, |
Base boom |
kN.m |
1166 |
Full-extent boom |
kN.m |
644.8 |
Outrigger extension distance |
, |
, |
Longitudinal |
m |
5.35 |
Lateral |
m |
6.0 |
Lifting height |
, |
, |
Base boom |
m |
10.5 |
Full-extent boom |
m |
33 |
Full-extent boom+jib |
m |
48.7 |
Boom length |
, |
, |
Base boom |
m |
10.5 |
Full-extent boom |
m |
33 |
Full-extent boom+jib |
m |
48 |
Attaching angle for
jib |
° |
0?15?30 |
Working speed
degree |
, |
, |
Boom elevating time |
, |
, |
Boom hoisting |
S |
80 |
Boom falling |
S |
50 |
Boom telescoping
time |
, |
, |
Full extending |
S |
100 |
Full retracting |
S |
70 |
Max.slewing speed |
r/min |
2 |
Outrigger
telescoping time |
, |
, |
Outrigger beam extending
synchronously |
S |
35 |
Outrigger bem retracting
synchronously |
S |
30 |
Outrigger jack extending |
S |
40 |
Outrigger
jack retracting synchronously |
S |
25 |
Hoisting speed(single
rope) |
, |
, |
Main winch with full
load |
m/min |
85 |
Main winch without
load |
m/min |
110 |
Auxiliary winch with
full load |
m/min |
80 |
Auxiliary winch without
load |
m/min |
100 |
Sound level outside
cabin |
dB(A) |
≤118 |
Sound level inside
cabin |
dB(A) |
≤90 |
|
|
|
