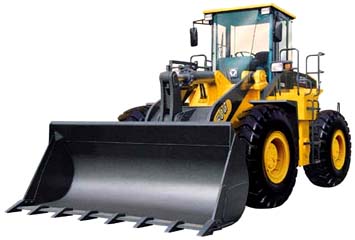

Introduction
·Fully hydraulic poered steering
with flow-amplified system, Pilot operated
control for loader hydraulic system, power
shift and electric shift optional transmission
makes convenient and flexible operating.
· XCMG new Z-bar linkage, high breakout
force,short hydraulic cycle time,automatic
leveling on any position,and higher prductivity.
· Special quadrat type transmission
shaft of construction machinery. Power transmission
is more reliable.
· Integral new luxury cab, excellent
visibility, safty and reliability.
· EG-TM combination is supported
on three points by dual directions, vibration-isolators.
Reducing resonance and fatigue failure of
structure.
· Optimized structure of diesel engine
air intake system reduces dust into air
filter, Prolonging the durability of the
engine and conveniencing the service of
air filter element. Optimized cooling system
drops overall heat balance temperature.
· Integral openable hood made of
compound material reduces noise and vibration,and
makes operation and service more convenient
and flexible.
· Equipped with SHANGHAI,STYRE,or
CUMMINS diesel engine, which is of electric
starting,electric stopping and excellent
performance and reliability.
Main specification
| Description |
Specification |
unit |
| Rated load |
5000 |
kg |
| Raising time |
<6 |
s |
| Total cycling time |
<11 |
s |
| Max. traction force |
145 |
kN |
| Articulation angle |
35 |
° |
| Min. turning radius |
6400 |
mm |
| Gradeability |
28 |
° |
| Wheel base |
3300 |
mm |
| Track |
2200 |
mm |
| Speed |
|
| 1st(F/R) |
11.5/16.5 |
km/h |
| 2nd(F/R) |
37 |
km/h |
| Engine model |
WD 615.67G3-31A(6CT8.3-C) |
|
| Rated power/rated
speed |
162KW/2200r/min(205HP/2200r/min) |
|
| Tyres |
23.5-25 |
|
| Clamp |
Min.clamping diameter |
?450/?800 |
mm |
| Dump clearance |
3230 |
mm |
| Dump reach |
1845 |
mm |
| LXWXH |
8414×2800×3460 |
mm |
| Operating weight |
18 |
t |
| Side
dump |
Bucket capacity |
2.3 |
m3
|
| Dump clearance(Downward/side) |
3025/3957 |
mm |
| Dump reach(Downward) |
1192 |
mm |
| Max.breakout force |
172 |
kN |
| (LXWXH) |
8227×3000×3460 |
mm |
| Operating weight |
19.2 |
t |
| Bucket |
Bucket capacity |
3.0 |
m3
|
| Dump clearance (Downward/side) |
3090 |
mm |
| Dump reacn (downward) |
1130 |
mm |
| Max.breakout |
170 |
kN |
| (LXWXH) |
8110×3000×3460 |
mm |
| Operating weight |
18 |
t |
