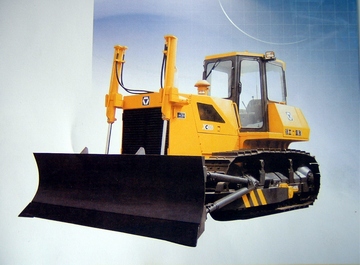

Brief Introduction
·High-performance 6135AK-10 diesel
engine with high torque rise features new
suspension and stretch support structure
for reducing vibration.
· Bevel and column gear torque divider
and transmission, 5-speed forward and 4-speed
reverse double-lever mechanical operation
and coupling sleeve shift for high efficiency
and low noise.
· Constant opening and hydraulically
driving main-clutch with wet-type multi-disc
friction plates and constant meshing hydraulic
steering clutch with wet-type multi-disc
friction plates reduce operator fatigue.
· Final drive with two-stage and
straight gear for higher traction.
· Hydraulic pilot control for low
effort, cylinders in the front place for
reducing system pressure. Control valve
outside the oil tank enlarges the tank capacity,
improves radiation and heightens the hydraulic
system reliability.
· Hexahedral cab and fully enclosed
hood feature excellent shape, good visibility
and easy maintenance.
· Reasonable center of gravity and
stable configurations allow excellent cushioning
between the main frame and undercarriage.
· Optional automatic oil-filling
system, automatic tensioning system of track
shoes, non-freon air conditione, straight
blade, hydraulic winch, etc.
Main Technical Specification
Items |
Parameter |
unit |
Engine model |
6135AK-10 |
|
Rated power |
103 |
KW |
Max. traction force |
141 |
kN |
Ground pressure |
0.068 |
MPa |
Gradient( Vertical/Horizontal) |
30/25 |
° |
Width of track shoe |
500 |
mm |
Operating weight |
17800 |
kg |
Contour dimension |
|
|
When blade with ripper(L×W×H) |
6380×3762×3118
|
mm |
Travelling speeds |
Forward 5 gears
25-10.61 |
km/h |
|
Reverse 4 gears
3.53-10.53 |
km/h |
Main parameter of
blade Type:Hydraulic raising &
adjustable blade |
Blade width×Height |
3762×1040 |
mm |
Max. blade cutting depth |
400 |
mm |
Max. blade raising height |
1020 |
mm |
Ripping angle |
50 |
° |
Max. ripping depth |
550 |
mm |
Max.ripper lifting height |
510 |
mm |
