Brief
Introduction

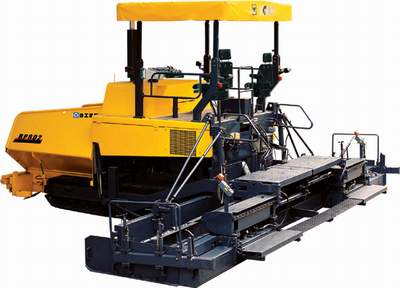

RP602 Multi-function Road Paver is a construction
machine mainly used for the paving project
on the road base and surface for highway
of various kind of material. This type
of machine is the first one to have the
most advanced technology, such as computer
–controlling system, sonic sensor,
electric auto-leveling system, temper
and electric-heat, Which makes the machine
features with the same quality and reliability
as that of the imported machine. Therefore,
RP602 becomes the ideal equipment for
the paving job on stabilized soil for
road base and base and asphalt concrete
for road surface.
The main features for RP602 Multi-Function
Asphalt Concrete Pave:
* Driving system with control for right
and left hand separately; computer-control;
auto-control technology for paving with
constant speed;
* Material level controlled with sonic
sensor technology, so as to achieve full
proportional even material feeding;
* Auto-leveling system with electric auto-leveling
technique;
* Screed with specific technology of dual
temper bars and electric-heating;
* Centralized lubricating system ensures
automatic and even lubricant feeding to
bearings in high temperature;
* Adopted with an advanced, mature and
reliable Deutz BF4M1013C Water-cooling
Diesel Engine, with a strong power;
* Distributing auger, material distributing
bottom plate and screed bottom plate made
of high wearing-resistant alloy and imported
wearing-resistant material;
* Control panel shows directly and clearly
all-working functions, paving traveling
speed; and could be mounted either at
right or left hand.
* The complete machine features with high
automation, easy and convenient operation,
and excellent construction performance
with high efficiently.
MAIN TECHNICAL PARAMETER
ltem |
Unit |
Parameter |
Basic
Working Width |
m |
2.5 |
Max
working Width |
m |
6.0 |
Max
Paving Thickness |
mm |
380 |
Paving
Speed |
m/min |
0~14 |
Traveling
Speed |
km/h |
0~3.0 |
Theoretical
Productivity |
t/h |
400 |
Hopper
Capacity |
t |
13 |
Gradient
Ability |
% |
20 |
Smoothness |
mm/3m |
3 |
Slope
Leveling Tolerance |
%
|
±0.02 |
Engine
Type |
|
BF4M1013C(Deutz) |
Rated
Output |
kw |
112
|
Speed |
r/min |
2300 |
Generator
Power |
kw |
20 |
Weight |
t |
15.5~20.0 |
Overall
Dimension |
mm |
6230×2500×3855 |
