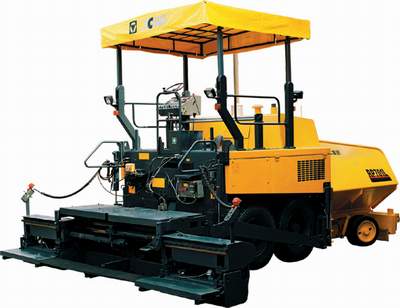

Brief Introduction
* RP601L?RP701L are elaborately designed
with advanced VOGELE pave technology .It
uses world advanced techniques: fully hydraulic
driven, constant velocity and automatic
control system. Centralized lubricating
system. Electric-heating system and the
conveyor and auger could be adjusted manually
or automatically. The working width is from
2.5m to 7m; the paving thickness could be
infinitely adjusted from 0-300m. All the
control components are on the control board
that can be movable to right and left side.
With the main switch and advanced automatic
leaving system, this type of pave has high
automation, easy and convenient operation,
good quality and high efficiency.
* It could be widely used on paving for
base and surface for road, airport , causeway,
port, square and an ideal equipment for
working with asphalt concrete.
MAIN TECHNICAL PARAMETER
| ltem |
Unit |
Parameter |
| Basic
Working Width |
m |
2.5 |
| Max
working Width |
m |
6.0/7.0 |
| Max
Paving Thickness |
mm |
300 |
| Paving
Speed |
m/min |
0~18 |
| Traveling
Speed |
km/h |
0~18 |
| Theoretical
Productivity |
t/h |
400 |
| Hopper
Capacity |
t |
13 |
| Gradient
Ability |
% |
20 |
| Crown
Adjust |
% |
0~3 |
| Smoothness |
mm/3m |
3 |
| Slope
Leveling Tolerance |
% |
±0.02 |
| Engine
Type |
|
D4114ZG2B |
| Rated
Output |
kw |
100 |
| Speed |
rpm |
2400 |
| Tank
Capacity |
L |
200 |
| Generator
Power |
kw |
20 |
| Weight |
t |
16~18 |
| Overall
Dimension |
mm |
6096×2570×3832 |
