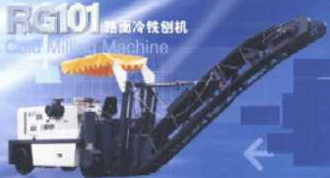

RG101 Cold Milling Machine




RG101 milling machine is one kind of road maintenance and repairing machinery for asphalt road surface, which is mainly used to dig and renew the asphalt and concrete surface of streets, road, airports, warehouse, parks, etc. It can efficiently mill off the bumps, asphalt stair stepping, screen-shaped crevices, vehicle tracks on the road surface, and it can also dig holes and make grooves on the road surface. The machine can also be used for cutting tracks ( to make sure a good traction between the tyres and road surfaces) and milling the road surface to be even and flat. For its high work efficiency, simple applicable technology, easy-controlled milling depth, flexible and convenient operation, it has been widely used in the road maintenance and renewing construction.
?Main Technical Specification
Max.milling width(mm):1020
Max.milling depth(mm):120
Numbers of tooll:84
Milling drum diameter(mm):660
Working speed(m/min): 0~11
Travelling speed(km/h): 0~11
Gradeability:(%): 20
Min.turning radius(mm): 7000
Ground clearance(mm): 120
Operating weight(kg): 12000
Engine
Manufacturer: Guangxi Yulin Diesel Engine Co. Ltd.
Model: YC6108
Rated power(Kw/Hp): 115
Rotation speed(rpm): 2200
Fuel consumption:1/1load(g/Kw.h): 230
Fuel tank capacity(L): 180
Hydraulic oil tank capacity(L): 150
Water tank capacity(L): 290
Electrical system (V): 24
Contour dimension
Length(mm): 4552
Width(mm): 2218
Height(mm): 2804
